PyVisA: Visualization and analysis of path sampling results

In this example, we become familiar with PyVisA. Every example on the website can be used to generate data for the analysis.

PyVisA is composed of two units: a compressor tool and a visualization tool. The visualization tool requires the additional installation of the optional GUI requirements. Both units can be executed directly with the pyvisa command or used as a Python library.

Here, we illustrate the command-line usage of the PyVisA components.

Since clusters might not support GUIs or the related packages, the GUI requirements are not prerequisites for PyRETIS or command-line PyVisA use. To operate the PyVisA GUI visualizer, these packages must therefore be installed manually, for example with pip.


Verification status: engine – see Tutorial map.

Tutorial quick start

  • Best starting point: any completed path-sampling tutorial with an out.rst file; the GROMACS hydrate tutorial is a common example.
  • Requirements: PyQt5 is required only for the GUI visualizer, not for compression.
  • Compress: pyvisa -i out.rst -cmp.
  • Open the GUI: pyvisa -i out.rst or pyvisa -i data.hdf5.
  • Expected output: compressed .hdf5 data and plots selected in the GUI.
  • Related check: examples/tests/test-pyvisa/; see Example test status.

Compressor

The compressor tool can be executed with:

pyvisa -i <input_file> -cmp

where <input_file> is the same .rst file used to execute the PyRETIS simulations.

PyVisA will read, for each folder, the energy and the order parameter files. It will check the consistency and integrity of each file and discard corrupted data. The compressor tool will then generate pyvisa_compressed_data.hdf5.zip, where all the input files are condensed, compressed, and organized to simplify the following post-processing operations.

The compressor tool reports file inconsistencies, such as corrupted files or mismatched cycles. This situation might happen when the simulation data have been produced by multiple machines and/or by multiple independent runs.

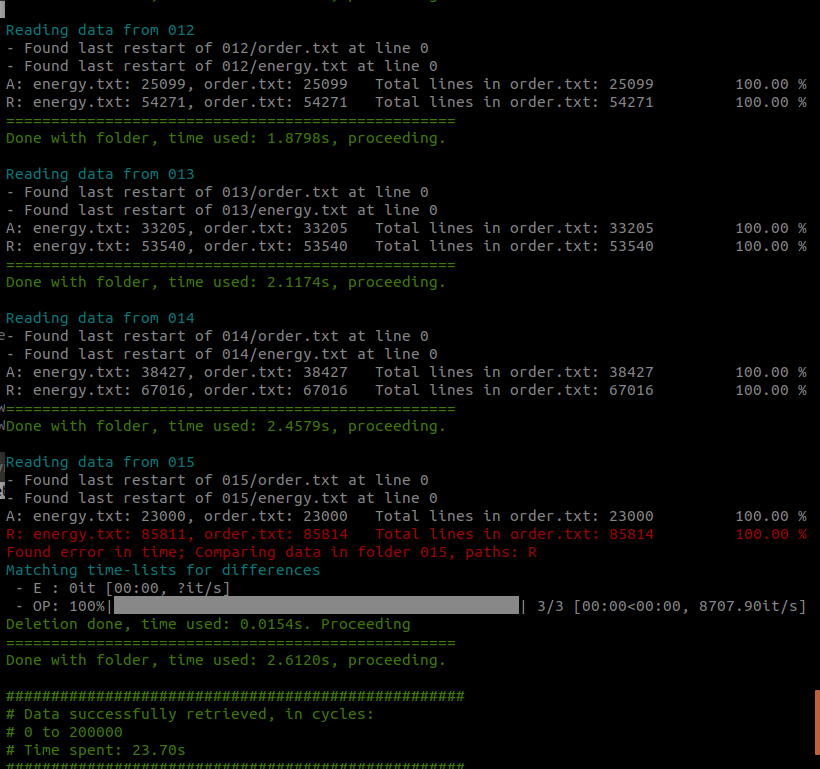

Terminal output of the compressor tool

Fig. 48 A report on the reading and consistency check for each ensemble and for each file is provided by the compressor tool.

The source files are not touched by this operation. If the data consistency is very low, a manual check is required before importing the data.


Remote/headless workflow

On clusters or remote machines where the GUI is not available, run the compressor from the command line and move the compressed file to a machine with the GUI requirements installed:

pyvisa -i <input_file> -cmp

This creates pyvisa_compressed_data.hdf5.zip in the simulation directory. Copy that file to the local machine and open it with:

pyvisa -i pyvisa_compressed_data.hdf5.zip

The same remote workflow can be used after recalculating order parameters or collective variables:

pyvisa -i <input_file> -recalculate
pyvisa -i <input_file> -cmp

For more details on remote use, direct GUI use, and the -data option, see The PyVisA application.


Visualization

The visualization tool can be executed with:

pyvisa -i <input_file>

where <input_file> can either be the .rst PyRETIS input file or the compressed file generated by the compressor tool, pyvisa_compressed_data.hdf5.zip by default.

The PyVisA GUI has two main panels: data and plotting.

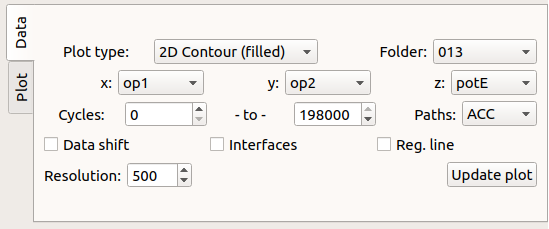

PyVisA data selection panel

Fig. 49 Data panel: select the plotting type and data sub-set.

The plot types are defined by:

  • Plot type: select the Matplotlib plot type and the number of dimensions to use. When plotting density maps, path weighting of accepted trajectories is an option.

Data sub-sets selection

Data selection and manipulation criteria are:

  • x, y, z: list of order parameters, cycles and timesteps. Also, y, z allows the selection of the kinetic, potential, and total energy (kinetic+potential).
  • Folder: choose an ensemble number or select all of them.
  • Paths: accepted (ACC), rejected (REJ), or both (BOTH). See Path status codes for all status codes.
  • Cycles: select the minimum and maximum cycle number, where a cycle is a Monte Carlo move, i.e. a trajectory for each ensemble.
  • Data shift: shift the x-y data. This can be useful in the case of a cyclic order parameter such as an angle or dihedral.
  • Interfaces: toggle interface lines (2D plot) or planes (3D plot) It requires that x is the main order parameter (OP1).
  • Reg. line: plot a linear regression line and report its slope, intercept and r–squared values.
  • Resolution: number of pixels or grid–points to use for density, surface plot types. For scatter plots, it controls the dot size.

Plotting

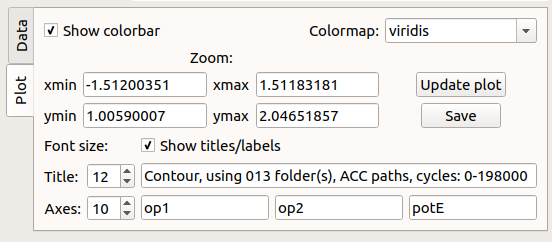

PyVisA plotting preferences panel

Fig. 50 Plotting panel: select the various plotting preferences.

From the GUI, without reloading the data, it is possible to manipulate the picture. The options are:

  • Colormap: the colormaps to use for the plot.
  • xmin/xmax: minimum and maximum x–values in the plot.
  • ymin/ymax: minimum and maximum y–values in the plot.
  • Save: save the figure in a .png file.
  • Font size, Titles/Axes: the font size of plot titles and axis labels.
  • Show titles/labels: display the plot titles and axis labels.

Data handling

Further options can be accessed from the drop-down panel labeled **File**.

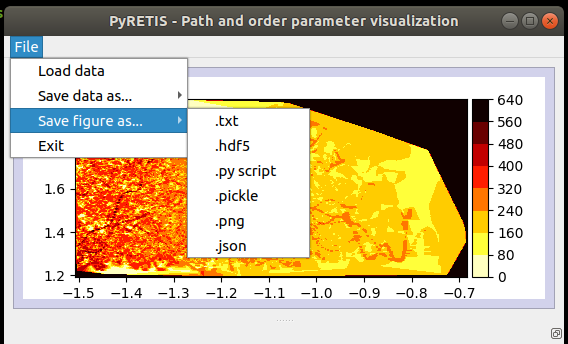

PyVisA file operations

Fig. 51 A drop-down menu for file operations.

The drop-down menu contains a few options:

  • Data Loading: reload the compressed simulation data.

  • Data Saving: save the simulation data, for example with the compressor tool, in .hdf5 format.

  • Figure save: save the current data selection/picture. Several options are here available. To further facilitate data handling, PyVisA can save the selected data in very different ways. The idea is to minimize user efforts in data manipulation. In all the following selections, the file name is automatically generated to contain all the information for (manually) reconstructing the plot.

    The figure’s data can be saved in:

    • Raw format: .txt file. Other visualization software can directly be used (e.g. xmgrace, gnuplot).
    • JSON format: .json file. This allows users to directly access the numbers corresponding to a plot and/or load them via the JSON package.

    The figure’s object can be saved in:

    • .hdf5: a versatile compressed format that can be loaded also by other programming languages (e.g. R).

    The figure itself can be saved as:

    • figure.png: a .png file.
    • script.py: a Python program is generated to reproduce the selected plot from the compressed data simply by typing python <name_file.py>.

A large variety of plots can thus be generated via PyVisA. The respective data can be saved in different formats to further facilitate post-processing and analysis in different programming languages.

Tested by

The command-line compression and analysis helpers are represented by examples/tests/test-pyvisa/. GUI behavior can depend on local Qt availability, so use the heavy check as the automated target and this page as the interactive guide.
